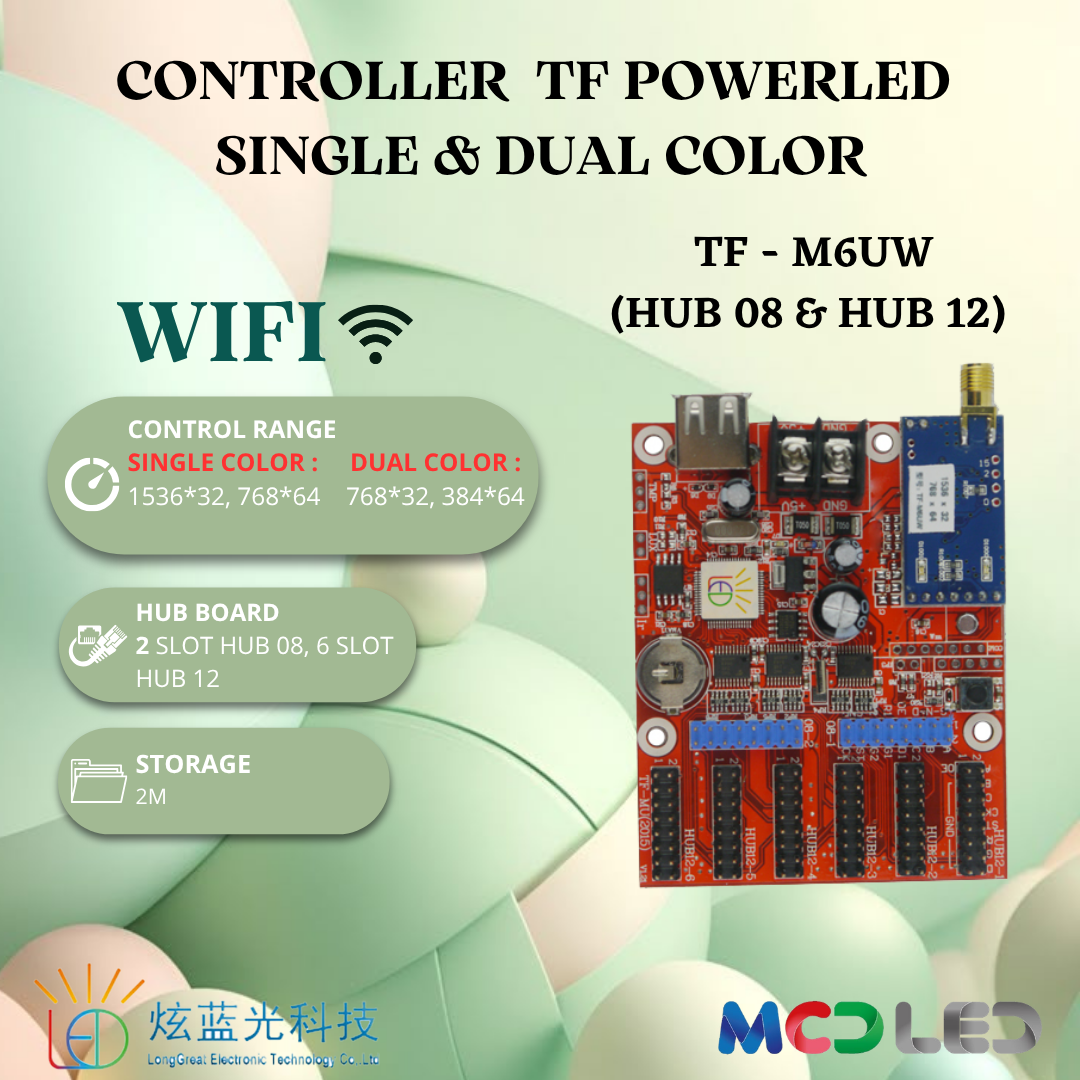

TF M6UW HUB 08 & HUB 12
1. State : Batch supply
2. Function introduction : More arbitrary division,dazzle colour border area,WIFI communication
3. Usage : indoor/outdoor
4. Pixel : Single colour 768×32;384×64; Double colour 384×32;192×64
5. USB fuction : USB program update, USB brightness adjustment, USB panel setup. Settings stored as a file format and do not affect the original document in USB. SD card/mini-SD card is Compatible when using USB.
6. Ports : two 08 port; six 12 ports
7. Scanning mode : support 1/16,1/8,1/4,1/2,Scan the monochrome,double color module.
8. Storage : 2M
9. Program number : Support at most 200 programs,each program support 16 partitions simultaneous play,each image-text 200 messages.（Quantity in storage space under the premise of memory）
10. Display : rain,fountain,scroll and much more
11. Border : support many Color border,Picture border
12. Flash format : support GIF,SWF
13. Image format : support BMP,JPG,GIF,WMF,ICO
14. Communication way : Stand-alone,LAN,Intenet remote cluster management
15. Brightness : Level 16 highlighted,support manual
16. screen switch : manual
17. Test buttons : Test buttons on-board,can switch over to test mode.
18. Extension function : Temperature sensor/Temperature&humidity sensor(Diagram for connection),Monochrome expand height,Through to 75 full-color interface.
19. Electrical parameters : +5V DC(5.0V～6V),Power consumption<3W
20. Working temperature : -30℃～70℃
21. Size : 56mm*88mm
