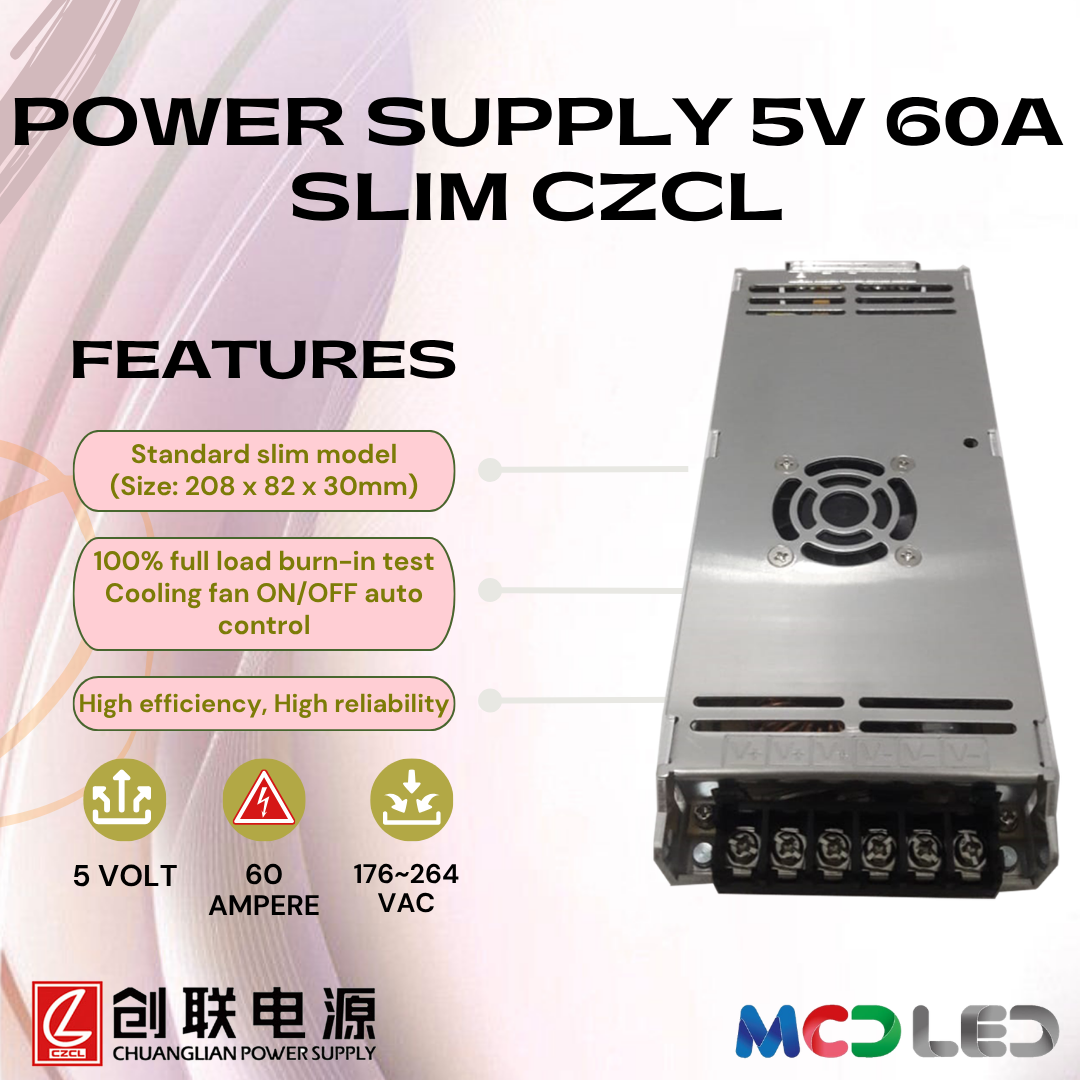

Features:
Low cost, high reliability
Built-in EMI Filter
Low output ripple&noise
Protections: Over load/ Short circuit
Over voltage/Over temp
Forced air cooling by built-in DC fan
Cooling fan ON/OFF auto control
Case: 813 Size: 208*82*30mm
AC Input voltage range”””176-264VAC
Input frequency”””47-63Hz
AC Inrush current”””Cold start, 60A/ 230VAC
DC adjustment range””10% rated output voltage
Line regulation(full load)”””’0.5%
Output over load protection”””110%-150% fold back current limiting, auto-recovery
Output over voltage protection”””115%-150% of rated output voltage
Rise, hold up time”””.50mS, 20mS at full load (typical)
Withstand voltage”””I/P-O/P, I/P-FG: 1.5KVAC, O/P-FG: 0.5KVAC,1 min
Working temperature”””-10′” to + 40′”@100%, +60′”@ 60% load
Storage temperature”””-20′”~ +85′”,20%~ 95%RH (non-condensing)
Safety standards”””Design refer to GB4943,UL60950-1,EN60950-1
EMC standards”””Design refer to GB9254,EN55022 class A
Cooling method”””Free air cooling by built-in DC fan
