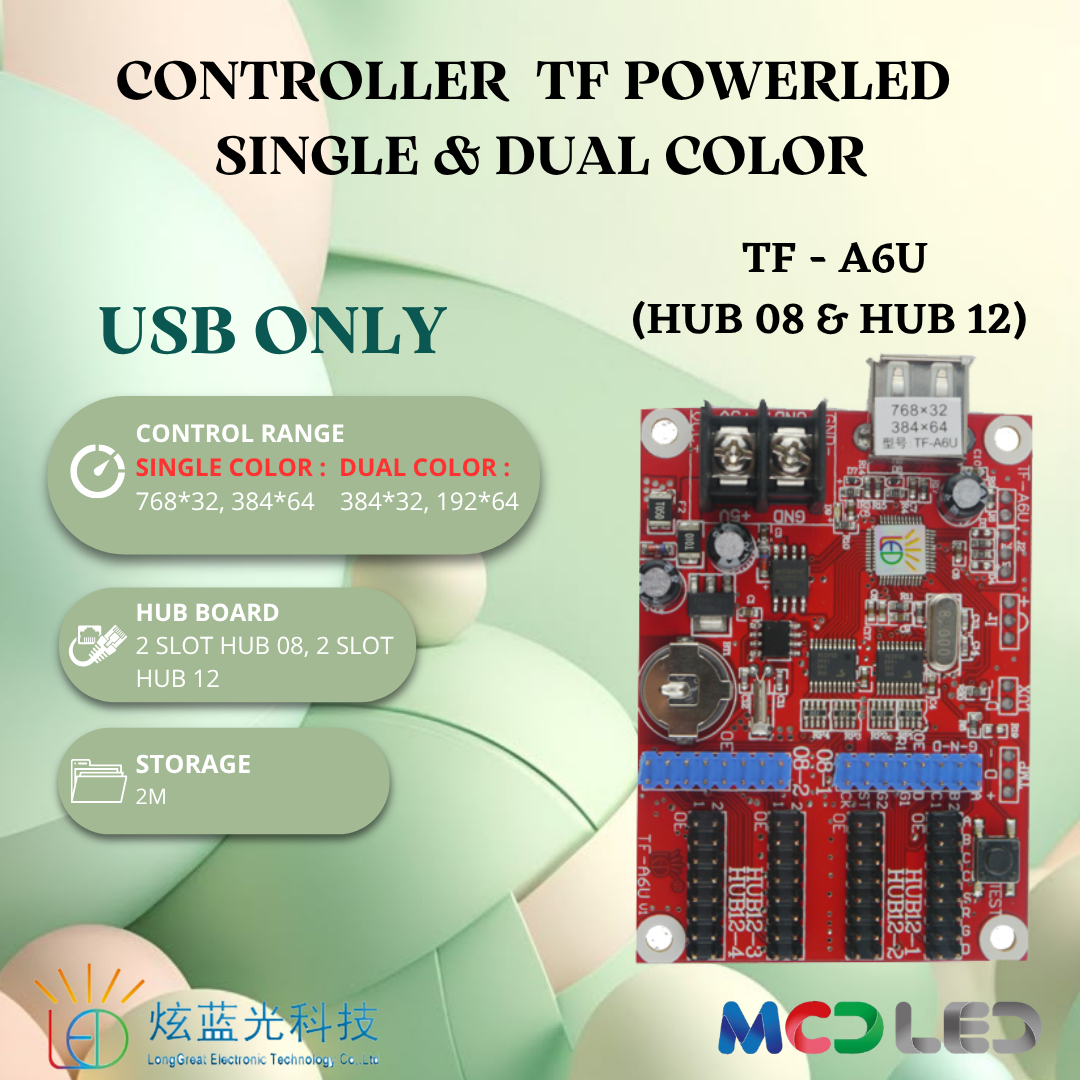

TF A6U HUB 08 & HUB 12
1. State : Batch supply
2. Function introduction : Multi-area displays,colorful borders,U disk program update,U disk panel set-up,LED display asynchronous control card.
3. Usage : indoor/outdoor
4. USB function : USB program update, USB brightness adjustment, USB panel setup. Settings stored as a file format and do not affect the original document in USB. SD card/mini-SD card is Compatible when using USB.
5. Pixel : Single colour768x32;384×64
Double colour384x32;192×64
6. Ports : Two 08 port;four 12 ports
7. Scanning mode : support 1/16,1/4,Scan the monochrome,double color module.
8. Storage : 2M
9. Program number : Support at most 200 programs,each program support 16 partitions simultaneous play,each program support 200 messages.（Quantity in storage space under the premise of memory）
10. Display : rain,fountain,scroll and much more
11. Border : support many Color border,Picture border
12. Flash format : support GIF,SWF
13. Image format : support BMP,JPG,GIF,WMF,ICO
14. Brightness : Level 16 highlighted,support manual
15. screen switch : manual
16. Test button : On-board test button,Can switch over the
17. Extension function : Temperature sensor,Temperature&humidity sensor,Brightness sensor(Diagram for connection),Monochrome expand height,Through to 75 full-color interface.
18. Electrical parameters : +5V DC(4.5V～6V),Power consumption<0.5W
19. Working temperature : -30℃～70℃
20. Size : 85mm*55mm
