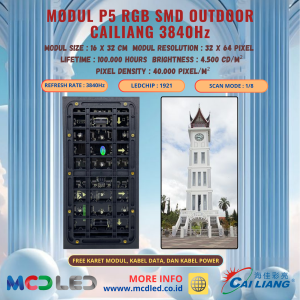

PANEL MODUL P5 RGB SMD FULL COLOR OUTDOOR MERK CAILIANG 3840 Hz

KategoriMODUL RUNNING TEXT, SPAREPART RUNNING TEXT & JWS, SPAREPART VIDEOTRON, MODUL OUTDOOR, MODUL VIDEOTRON, FULL COLOR OUTDOOR
Di lihat176 kali
Harga Rp 245.000
Beli Sekarang
021 87701912
081908191774
081908191775

Detail Produk PANEL MODUL P5 RGB SMD FULL COLOR OUTDOOR MERK CAILIANG 3840 Hz

MODUL P5 RGB SMD FULL COLOR OUTDOOR CAILIANG 3840 HZ
1. Pixel Spesification
1. Specifications : P5 (D5) SMD outdoor Full Color
2. Pixel Configuration : 1R1G1B
3. Pixel Density : 40,000 (dot/㎡)
4. Pixel Pitch : 5mm

2. Module Specifications
1. Module Resolution :64*32=2048(dot)
2. Module Size : 320*160mm
3. PCB Thickness : 1.6mm
4. Plastic Base & Mask : JXS

3. Screen Parameters
A. Structure Representation
1. Structure Explain: every pixel consist of red blue and green chips
2. IC: ICN2037 Lamp Encapsulation: SMD LED 1921/2525
3. Encapsulation Manufacturer
B. Specialty Analysis
Blendent Analysis : To achieve the best white balance effect, Strict requirements to LED Brightness , The color proportion is R:G :B=3:6:1

Specification Requirements
1. Pixel
1. Pitch : 5mm
2. Pixel Configuration : 1R1G1B
3. Pixel Density : 40,000 dot/㎡
2. Module
1. Module Resolution : 64dot*32dot
2. Module Size : 320*160mm
3. Module Pixel : 64dot*32dot=2048dot
4. View Angle : Horizontal 150°,Vertical 120°
5. Best View Distance : 5m~50m
6. Work Temperature : -10℃~75℃
7. Environment Humidity : 10%—90%RH
8. Storage Temperature : -30ºC~+90ºC
9. Protection Grade : IP65
10. System Guard : Moistureproof ,dust proof , resist high temperature, corrosion prevention, prevent burn,static-free,shock resistant,resist lightning
3. Power Supply
1. Supply Voltage : AC110V-220V±15%,40-65Hz
2. Average Power : 380w/㎡
3. Max. Power : 480w/㎡
4. Control System
1. Control Host : Lenovo or above
2. Control system : WIN 98/ 2000/ XP
3. Control Method : Control with the computer
4. GPU : DVI GPU
5. Diving Method : Constant Current
6. Refresh Rate : 3840Hz
7. Frame Frequency : ≥60Hz
8. Grayscale : Single Color 16384 Level
9. Color : 10.7 Hundred Million
10. Brightness : ≥4500CD/M2
11. Scan mode : 1/5
12. Brightness Adjustment : Manual & Automatically
13. Video Signal : RF,S-Video,RGB,RGBHV,YUV,YC,.etc
14. Control System : PCTV+DVI GPU+Master card+ Network Cable
15. Mean Time Between Failure : 10000 hour
16. Lifetime : 100 thousand hours
17. Flatness : Between adjacent pixels≤0.5mm;
18. Brightness Uniformity : Pixel light intensity, MODULE brightness is balance≤0.1
19. Malfunction dot rate : <0.0001
5. Wire
1. Effective Communication Distance : National transmission distance 100m,Optical fiber transmission distance≥100m
