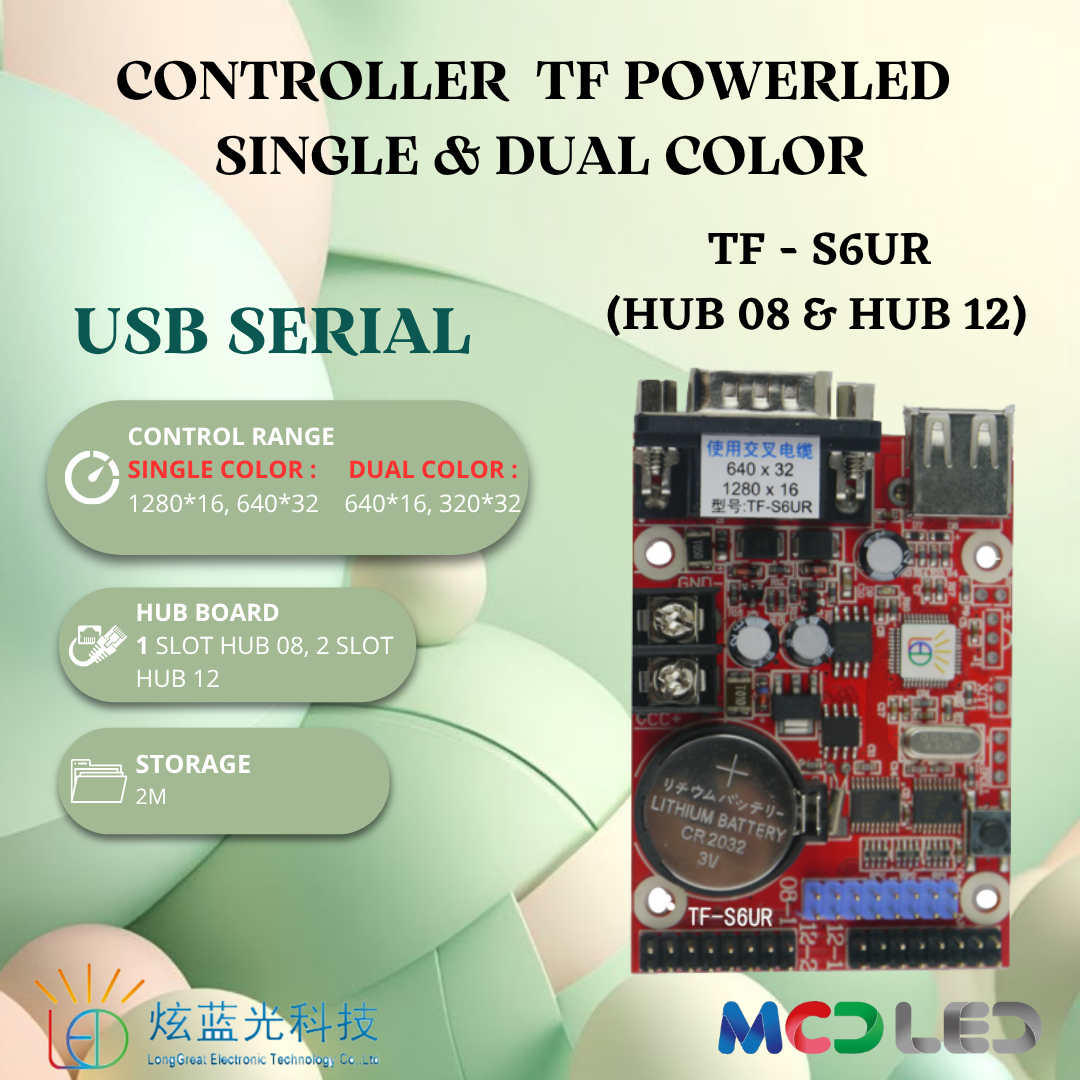

TF S6UR HUB 08 & HUB 12
1. State : Batch supply
2. Function introduction : Multi-area displays,colorful borders,U disk program update,U disk panel set-up,LED display asynchronous control card.
3. Usage : indoor/outdoor
4. USB function : USB program update, USB brightness adjustment, USB panel setup. Settings stored as a file format and do not affect the original document in USB. SD card/mini-SD card is Compatible when using USB.
5. Pixel : Single colour:1280×16,640×32
Double colour:640×16,320×32
6. Ports : one 08 port;two 12 ports
7. Scanning mode : support 1/16,1/8,1/4,1/2,Scan the monochrome,double color module.
8. Storage : 2M
9. Program number : Support at most 200 programs,each program support 16 partitions simultaneous play,each image-text 200 messages.（Quantity in storage space under the premise of memory）
10. Display : rain,fountain,scroll and much more
11. Border : support many Color border,Picture border
12. Flash format : support GIF,SWF
13. Image format : support BMP,JPG,GIF,WMF,ICO
14. Brightness : Level 16 highlighted,support manual
15. screen switch : manual
16. Test buttons : Test buttons on-board,can switch over to test mode and color test mode.
17. Extension function: Temperature sensor,Temperature&humidity sensor,Brightness sensor.(Diagram for connection)
18. Electrical parameters : +5V DC(4.5V～6V),Power consumption<0.5W
19. Working temperature : -30℃～70℃
20. Size : 70mm*50mm
