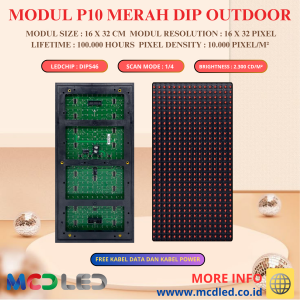

MODULE P10 DIP OUTDOOR RED COLOR :
1. LED : DIP546
2. Pixel Pitch : 10mm
3. Color : RED
4. Module Size (W*H) : 320mm×160mm
5. Module Resolution(W*H) : 32×16 pixels
6. Pixel Resolution (Pixel/ M2 ) : 10000 pixels/㎡
7. Module Weight（Kg）: 0.41kg
8. Brightness : ≧2300cd/m²
9. Interface : HUB12D(IDC16)
10. Drive Method : 1/4 scan, constant current driving
11. Viewing Angle : Horizontal ≦140 degree，Vertical ≤140 degree
12. Best Viewing Distance : 10—100m
13. Life Span : >10W Hours
14. Waterproof : <IP65
15. Dead Dots Rate : ≤3PPM
16. Working Voltage : DC5V±10%
17. Max Power Consumption per Module : ≤20W/module
18. Average Power Consumption per Module : ≤10W/module
19. Single LED Current : ≤20mA
20. Module Current : 3A
21. Max Power per Square Meter : 350w/ m²
22. Average Power Consumption per Square Meter : 180w/ m²
23. Working Temperature : －20℃～60℃
24. Working Humidity : 10%—90%RH
