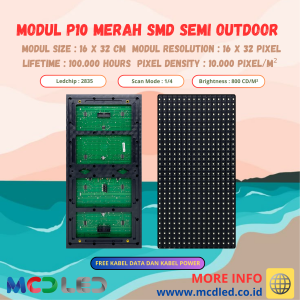

MODULE P10 SMD SEMI OUTDOOR/INDOOR RED COLOR :
1. LED : SMD2835
2. Pixel Pitch : 10 mm
3. Color : Red
4. Module Size (W*H) : 320×160 mm
5. Module Resolution(W*H) : 32×16
6. Pixel Resolution (Pixel/M2) : 10000 pixel/m2
7. Brightness : 800 cd/m²
8. Data Port : HUB12 (IDC16)
9. Drive Method : 1/4 scan constant current
10. viewing Angle Horizontal : ≥120 degree Vertical ≥ 120 degree
11. Best Viewing DistancE : 10M – 50 m
12. Life Span : >10W Hours
13. Dead Dots Rate : ≤3PPM
14. Working Voltage : DC 5V± 10%
15. Working TemperatureN :－20℃ ~ 60℃
16. Working Humidity : 10% – 90%RH
17. Max Power : ≤20W/PCS
18. Avg Power : ≤10W/PCS
19. Module current : 3A
