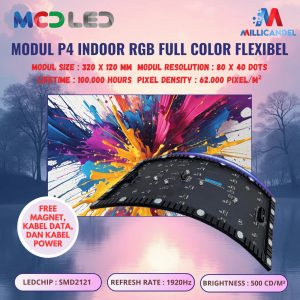

MODUL P4 RGB FULL COLOR INDOOR FLEKSIBEL

Pixel (mm): 4mm

Lamp: SMD2121

Module Resolution: 80*40 dots

Module Size: 320*120 mm

Pixel Density (dots/m²): 62500

Unit Board Weight (g): 280 ±5

Brightness (cd/m²): >500 cd/m²

Contrast Ratio: 5000:1

Color Temperature (K): 2000–18000

Viewing Angle (Horizontal; Vertical): 160 / 140

Brightness Uniformity: ≥98%

Single Module Current (A): 3 ±0.1

Power Supply Requirement: DC5 ±10%

Peak Power Consumption (W/m²): 465

Average Power Consumption (W/m²): ≤153

Drive Mode (S): Constant current 32

Refresh Rate (Hz): 1920Hz

Frame Rate (Hz): 50&60

Operating Temperature (°C): -10 – 40

Storage Temperature (°C): -20 – 60

Operating Humidity (RH): 10%–80% no condensation

Storage Humidity (RH): 10%–80% no condensation
